QL Series
A Compact System that Automatically Mixes up to 16 Speech Mics
![A Compact System that Automatically Mixes up to 16 Speech Mics](/fi/files/system_mixer_ql_01l_400x396_3b4522ce2af93906a89e75bf49fe9954.jpg)

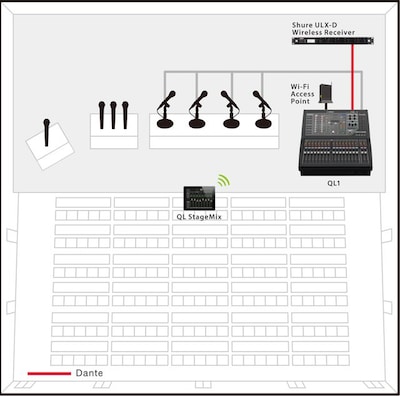

At conferences or speech events where space for equipment is limited, a compact all-in-one QL console can be a huge advantage. The built-in Dan Dugan Automixer can automatically provide an optimum mix of up to 16 speech microphones. Events can be recorded directly to, and pre-recorded BGM can be played back from a USB flash drive. The StageMix application can provide remote control capability for even greater efficiency and convenience.
A Simple Live System with Daisy-chained l/O Racks
![A Simple Live System with Daisy-chained l/O Racks](/fi/files/ql_ex02_400x396_7b54d117c3f52a9ec98ade7705919168.png)
This is an example ofa simple live system that makes use of Dante networking Stage side R-series l/O rack units are connected to the front-of-house QL console via network cables An Aviom personal monitor system can also be connected to the Dante network via an Aviom D800-Dante distributor. This setup even allows multi—track recording to a computer via the Dante network.
QL Console for Monitor Mix and HQ in a Reliable Star Network
![QL Console for Monitor Mix and HQ in a Reliable Star Network](/fi/files/ql_ex03_400x396_fb9ba7776312d151cb0795f5c5011b61.png)
In this compact but capable live sound system a CL series console serves front—of—house while a stage side QL console doubles as monitor mixer and I/O device thanks to its Port to Port capability. The Gain Compensation function means that head amp gain can be safely controlled from either console without interference. For maximum system reliability a star network configuration with network switches is used for redundancy, so that a problem in one part ofthe network will not interrupt the overall signal flow, Live recording to multiple computers is also possible.
An RMio64-D is used to supply a MADI feed to an OB van.
![An RMio64-D is used to supply a MADI feed to an OB van.](/fi/files/cl_ex04_793x556_85b8c734f7e5bb8dce673103ee06d15b.png)
The live sound system includes a CL console at front of house and a QL console stage side. In addition to providing the monitor mix, the stage side QL console’s Port to Port feature allows it to function as an I/O device with capabilities comparable to an R series rack unit, thus reducing overall system size and complexity.
The RMio64-D converts the system’s Dante signal to MADI for transmission to the OB van outside the venue. Sample rate conversion built into the RMio64-D effectively resolves word clock synchronization issues.
A CL or QL in a surround monitoring system
![A CL or QL in a surround monitoring system](/fi/files/application_broadcast_systems_v3_cl_ql_surround_monitoring_system_800x592_8cdaacab76b607cde885b94d22617c8e.jpg)

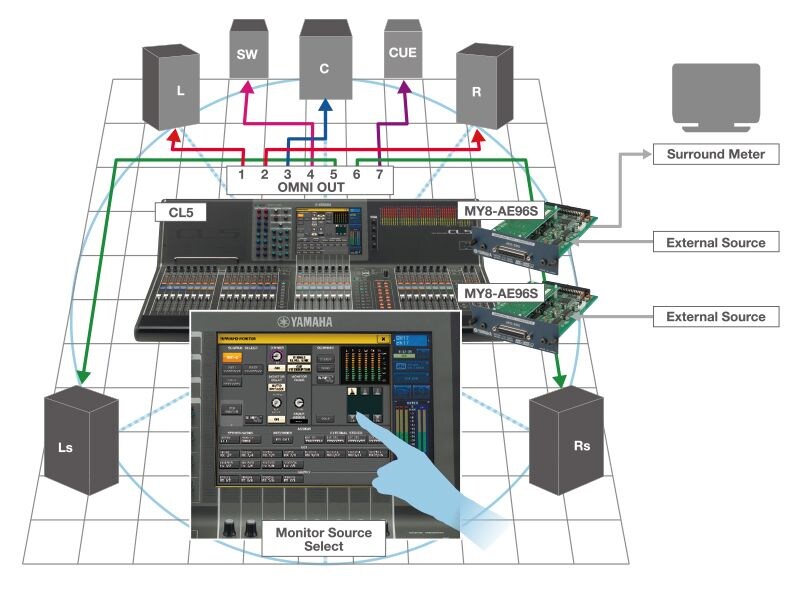

Connections to the surround monitor speakers and dedicated cue speaker are made via the console’s OMNI OUT connectors or a Mini-YGDAI expansion slot.
External surround sources are fed to the console via a Mini-YGDAI expansion slot so that sources can be switched and monitored via the console. The surround signals can also be fed to an external surround meter via a Mini-YGDAI slot.
